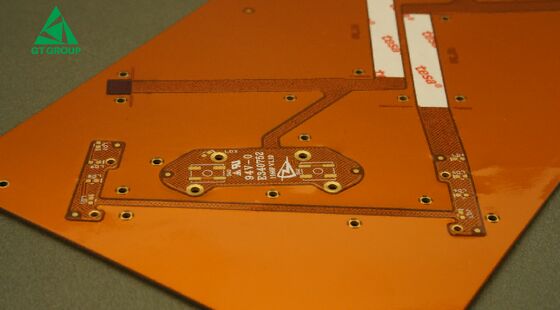

Impedance control Flexible PCB Board Featuring Thickness 0.1mm 0.3mm Designed For Signal Transmission

Product Description:

The Flexible PCB Board is a cutting-edge solution designed to meet the demanding requirements of modern electronic applications. Known for its exceptional versatility and reliability, this Flexible Printed Circuit Board offers outstanding performance across a range of industries, including wearable devices, medical equipment, consumer electronics, and AI support systems. Engineered with precision and high-quality materials, the Flexible PCB Board ensures seamless integration into complex electronic assemblies, providing both mechanical flexibility and electrical stability.

One of the standout features of this Flexible PCB Board is its remarkable hole position accuracy, which is maintained within a tight tolerance of +/-0.003 mm. This precision is crucial for ensuring perfect alignment during assembly processes, reducing errors, and enhancing the overall quality and reliability of electronic products. Such accuracy supports the development of compact and sophisticated devices where every micron counts, especially in applications like wearable technology and medical instruments where performance and safety are paramount.

The Flexible PCB Board is available in a wide range of thickness options, allowing designers to choose the ideal specification for their particular application. The dielectric thickness (Dk thickness) ranges from 0.076 mm up to 6.00 mm, providing significant flexibility in electrical insulation and mechanical properties. Additionally, the overall board thickness is customizable between 0.1 mm and 0.3 mm, catering to various design constraints and enabling ultra-thin, lightweight solutions without compromising durability or functionality.

To enhance protection and durability, the Flexible Printed Circuit Board is equipped with high-quality coverlay materials available in yellow and white colors. These coverlays serve as protective layers that shield the circuitry from environmental factors such as moisture, dust, and mechanical abrasion. The choice of yellow or white coverlay also allows for aesthetic customization and improved visibility during manufacturing and inspection processes. This combination of robust protection and visual clarity is especially beneficial in the production of wearable devices and consumer electronics, where both performance and appearance matter.

Applications for the Flexible PCB Board are extensive and diverse. In wearable devices, the lightweight and flexible nature of the board allows it to conform comfortably to the human body, enabling innovative designs in fitness trackers, smartwatches, and health monitoring devices. Medical equipment benefits from the board's reliability and precision, supporting critical diagnostic and therapeutic tools that demand high accuracy and consistent performance. Consumer electronics leverage the adaptability of Flexible Printed Circuit Boards to create sleek, compact gadgets with enhanced functionality, while AI support systems utilize their robust electrical properties to manage complex data processing and sensor integration efficiently.

In summary, the Flexible PCB Board is a premium electronic component engineered to deliver high precision, adaptable thickness options, and robust protection with its yellow and white coverlay choices. Its exceptional hole position accuracy of +/-0.003 mm, combined with a flexible range of dielectric and overall thicknesses, makes it the ideal choice for cutting-edge applications in wearable technology, medical devices, consumer electronics, and AI-driven solutions. By choosing this Flexible Printed Circuit Board, manufacturers and designers can ensure superior product performance, reliability, and innovation in their electronic systems.

Technical Parameters:

Customization:

Our Customized brand offers high-quality Flexible PCB Board products, expertly manufactured in China to meet your specific needs. As a leading provider of Flexible Circuit Board solutions, we specialize in delivering Flexible Printed Board products designed for a wide range of applications including wearable devices, medical equipment, consumer electronics, and AI support systems.

Featuring 1oz copper thickness, our Flexible PCB Boards ensure excellent electrical performance and durability. With a hole position accuracy of +/-0.003, we guarantee precise and reliable assembly for your critical applications. Additionally, all our Flexible Circuit Boards are RoHS compliant, ensuring they meet international environmental and safety standards.

Whether you require customized Flexible Printed Boards for prototyping or large-scale production, our expert team is dedicated to providing tailored solutions that align perfectly with your project requirements. Trust our Customized Flexible PCB Board products to deliver flexibility, reliability, and superior quality for your next innovative design.
